（單位：mm）
G2RV-ST
Slim I/O Relay
Slim I/O relay realizes space saving thanks to high-density mounting and ultra-slim body
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2023年1月5日
Slim I/O Relay + socket

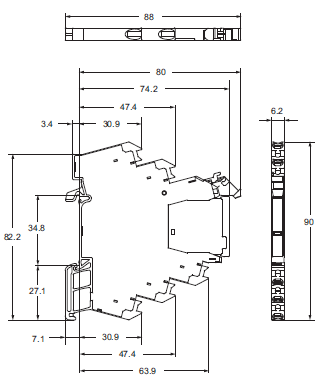

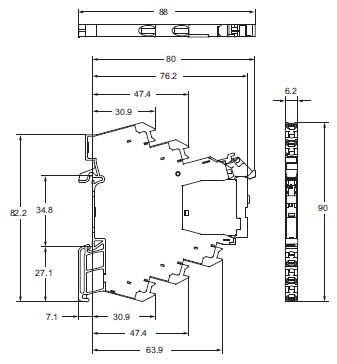

Push-In Plus Terminal Block
Models without latching lever (without test switch)
G2RV-ST500
G2RV-ST500-AP
Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.
Models with latching lever (with test switch)
G2RV-ST501
Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

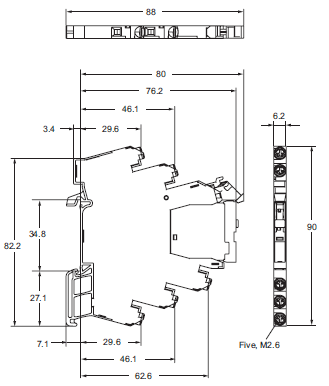

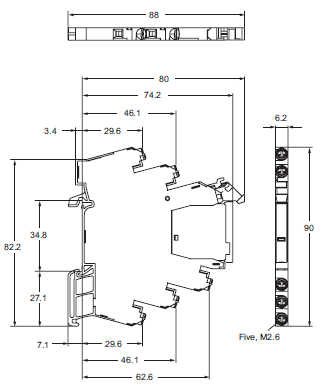

Screw terminal
Models without latching lever (without test switch)
G2RV-ST700
G2RV-ST700-AP
Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.
Models with latching lever (with test switch)
G2RV-ST701
Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

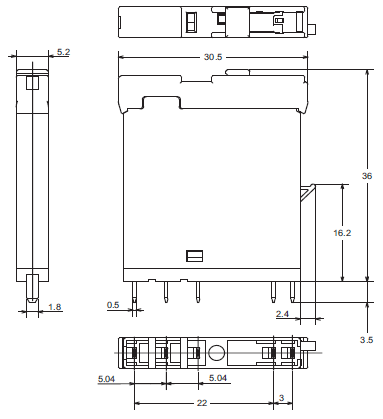

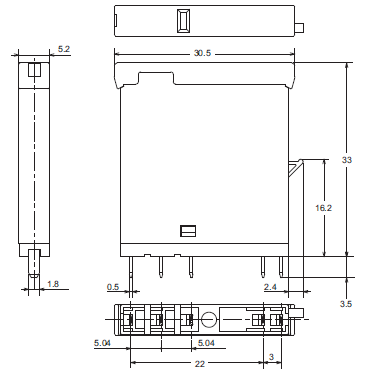

Relay for maintenance
Models without latching lever
G2RV-1-S-G
G2RV-1-S-AP-G
Models with latching lever (test switch)
G2RV-1-SI-G

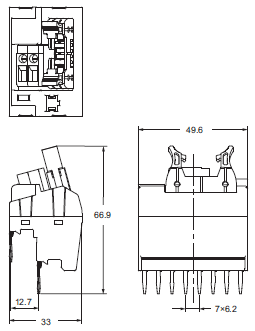

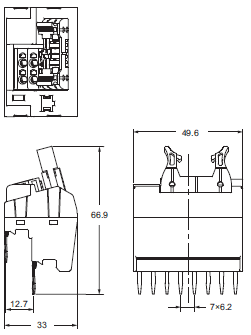

PLC interface unit
Push-IN
P2RVC-8ST-I-5(-1)
P2RVC-8ST-O-5(-1)
Screw
P2RVC-8ST-I-7-1
P2RVC-8ST-O-7-1
Accessories (order separately)

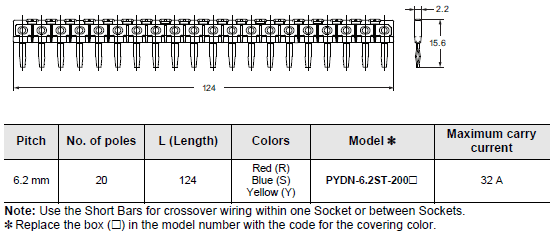

Short Bars
PYDN-6.2ST-200[]
Separate Plate
XW5Z-EP12

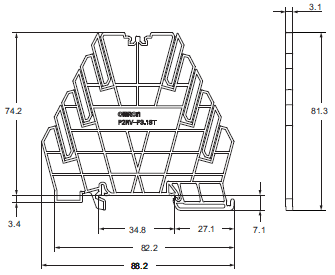

Isolation plate
P2RV-P3.1ST
Parts for DIN Track Mounting
Refer to your OMRON website for details on the PFP-[].
