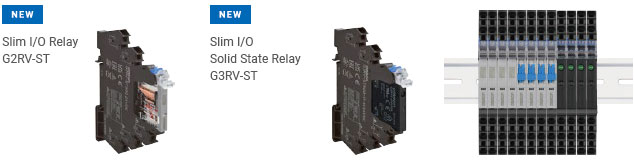

G2RV-ST

"Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward."

Our shared concept for the specifications of products used in control panels,
" Value Design for Panel " (herein after referred toas Value Design)
will create new value to our customer’s Combining multiple products that share the Value Design concept will further increase the value provided to control panels.

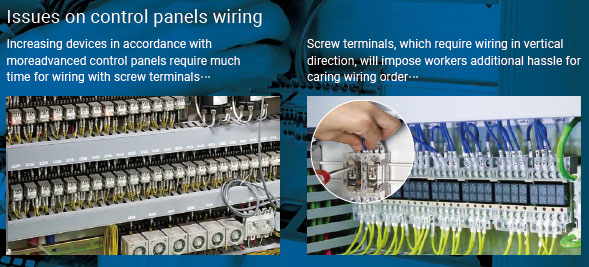

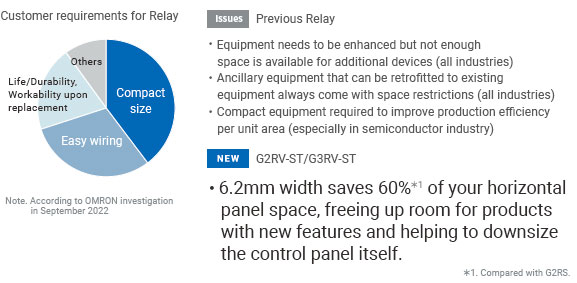

The interface wiring system of the smallest size industry＊1 help delivering more compact control panels with additional functionality.

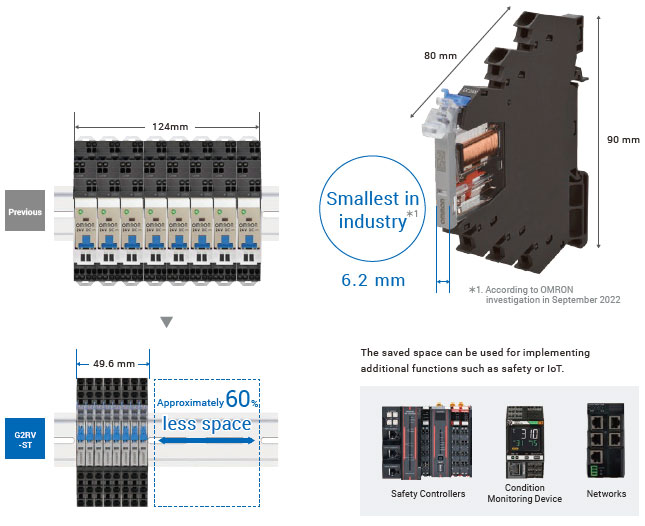

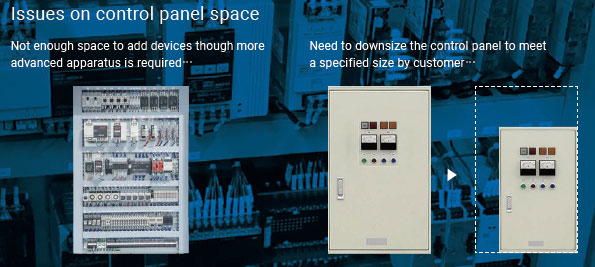

By replacing existing relays, you can downsize your control panel and enhance your equipment while maintaining its size.

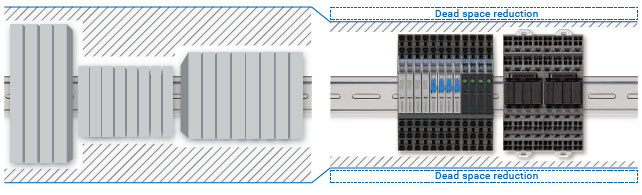

Our Value Design for Panel relays and their sockets are of the same height.

Unique product specifications let you shorten the entire process for building control panels.

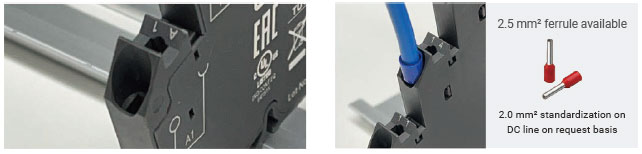

Wiring holes are wide in diameter and are structured diagonally to allow for better visibility and easy insertion, and support standard 2.5 mm² ferrule terminals.

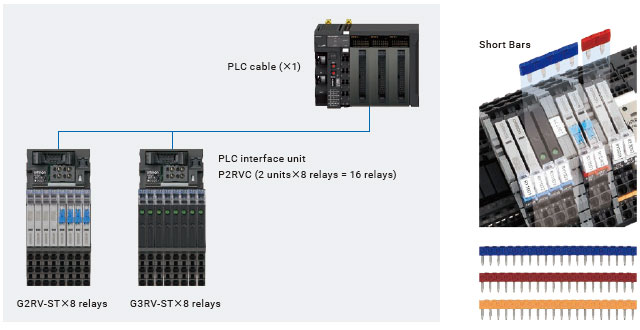

Our extensive lineup of accessories for reducing wiring allows for less wiring work and therefore less effort.

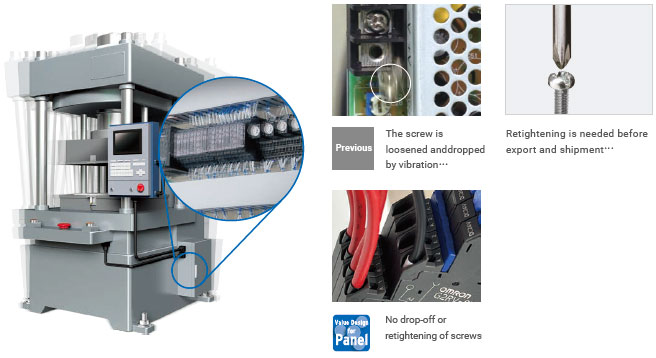

The pressure of the clamp spring holds the ferrule or wire securely with Push-In Plus technology, eliminating worries about screws loosening or disconnection due to vibration.

Made to be less taxing on the health of those who build control panels and more useful to on-site users.

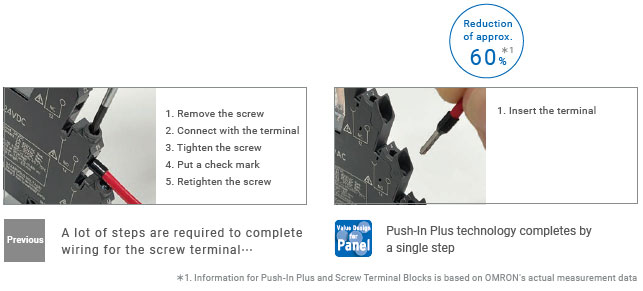

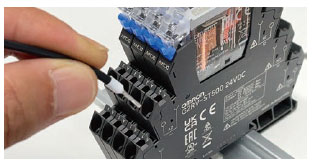

OMRON’s Push-In Plus technology is as easy as inserting to an earphone jack.
This reduces the load on workers fingers.

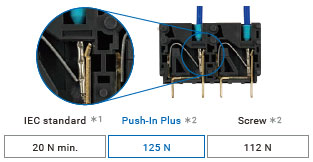

Even though less insertion force is required, the wires are held firmly in place by a unique spring structure that ensures reliability.

＊1. In the case that a cable diameter is AWG20, 0.5 mm²
＊2. OMRON's actual measurement value data.

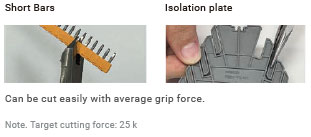

Short bars and insulation plates can be cut or removed with little force to deliver stress-free workability.

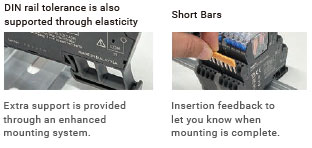

Work efficiency is enhanced by DIN rail sliding performance and short bar improvements.

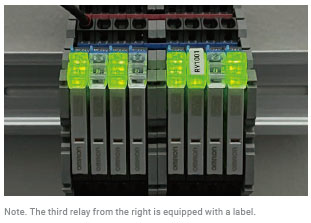

Visibility from the front is improved by a structure where the actual release lever lights and by expanding the light emission area.

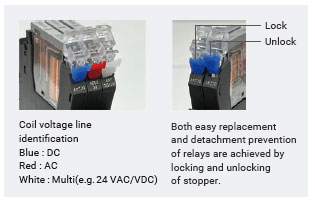

Voltage systems are color-coded for easy checking.

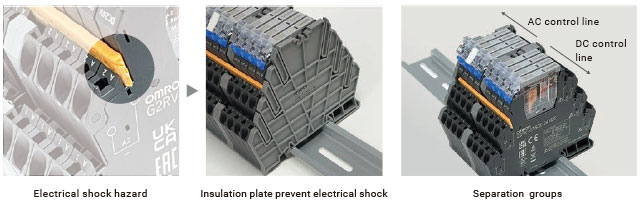

You can attach insulation plates to the ends of short bars to prevent electrical shock and separation.

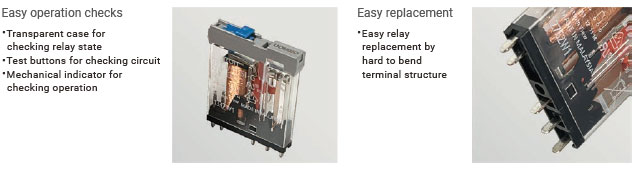

The relays themselves are designed to the finest detail for ease of use, allowing for easy operation checks and replacement.
